WPF Bar Chart rendering with skia

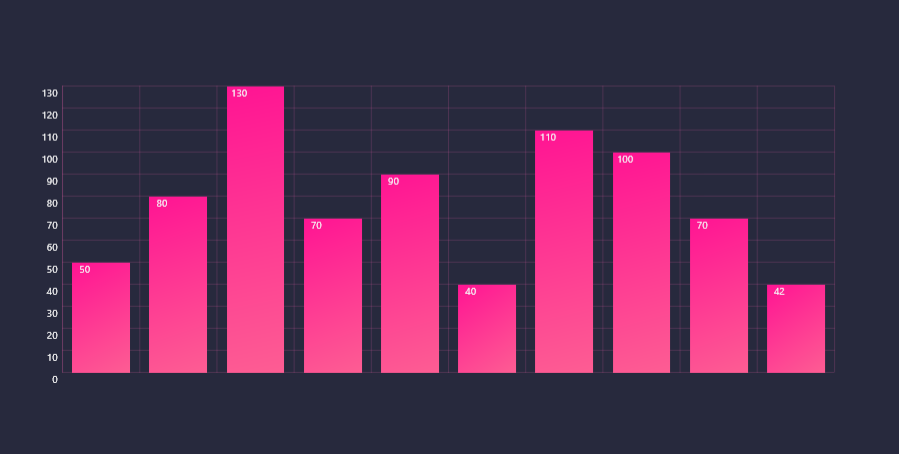

WPF Chart with SkiaSharp

SkiaShrap graphics library renders gradients very very smooth and I love it on WPF (as opposed to natural way of creating gradients) it also scales nicely when a window resizes without extra code;

	using System;
	using System.Collections.Generic;
	using System.Windows;
	using System.Windows.Input;
	using SkiaSharp;
	using Topten.RichTextKit;

	namespace Xaml.Shop.SkiaWPFSamples
	{
	SKPaint pinkFillPaint = new SKPaint
	{
	Style = SKPaintStyle.Fill,
	Color = SKColors.Pink,
	TextSize = 80,
	IsAntialias = true
	};

	SKPaint pinkStrokePaint = new SKPaint
	{
	Style = SKPaintStyle.Stroke,
	Color = SKColors.HotPink.WithAlpha(90),
	StrokeWidth = 0.5f,
	StrokeCap = SKStrokeCap.Round,
	IsAntialias = true
	};


	private void skiaCanvas2_PaintSurface(object sender, SkiaSharp.Views.Desktop.SKPaintSurfaceEventArgs e)
	{
	SKSurface easel = e.Surface;
	SKCanvas canvas = easel.Canvas;

	canvas.Clear(SKColor.Parse("#FF27293D"));
	var goldenRatio= 1.61803399f;

	var width = e.Info.Width;
	var height = e.Info.Height;

	var minVal = 0;
	var maxVal = 130;

	var stepHeight = 10;
	var stepCount = ((maxVal - minVal) / stepHeight);

	var headerH = (height - (height / goldenRatio))/2;
	var sideMargin = (width- (width / goldenRatio))/5;

	var xStart = 0f;
	var xEnd = width - (sideMargin * 2);

	var yStart = 0f;
	var yEnd = 0f;

	canvas.Translate(sideMargin, headerH);

	var chartHeight = height - (headerH * 2);
	var charWidth = width - (sideMargin * 2);

	var adjustedStepHeight = (int)Math.Floor((chartHeight / stepCount));
	var adjustedMaxVal = maxVal*((chartHeight) / maxVal);

	var count = 0;

	//draw chart rectangle

	SKRect chartRect = new SKRect(xStart,yStart,charWidth,chartHeight);
	canvas.DrawRect(chartRect,pinkStrokePaint);

	//draw horizontal lines
	for (int i = 0; i < stepCount+1; i++)
	{
	var y = (i * adjustedStepHeight);

	if (i > 0 && i < stepCount)
	{
	canvas.DrawLine(xStart, y, xEnd, y, pinkStrokePaint);
	}

	var rs = new RichString().Alignment(Topten.RichTextKit.TextAlignment.Right)
	.FontFamily("Segoe UI")
	.FontSize(10)
	.Add($"{maxVal - count}", textColor: SKColors.WhiteSmoke);

	var tw = rs.MeasuredWidth;
	rs.MaxWidth =25;

	rs.Paint(canvas,new SKPoint(xStart - 30, y), new TextPaintOptions{IsAntialias = true});

	count += stepHeight;
	canvas.Save();
	}

	//draw vertical lines
	for (int i = 0; i < 10; i++)
	{
	var w = charWidth / 10;
	canvas.DrawLine(i * w, 0, i*w, chartHeight, pinkStrokePaint);
	}
	canvas.Restore();



	var values = new List<int> {50,80,130,70,90,40,110,100,70,42};
	var z = 0;

	foreach (var val in values)
	{
	using (SKPaint paint = new SKPaint())
	{

	var secWidth = (charWidth / 10);
	var barW = secWidth / 4 * 3;
	var marginLeft = (secWidth - barW) / 2;

	var barH = val;


	// Create 300-pixel square centered rectangle
	float x = marginLeft+secWidth*z;
	float y = (chartHeight - (val / 10 * adjustedStepHeight));

	SKRect rect = new SKRect(x, y, x + barW, chartHeight);

	// Create linear gradient from upper-left to lower-right
	paint.Shader = SKShader.CreateLinearGradient(
	new SKPoint(rect.Left, rect.Top),
	new SKPoint(rect.Right, rect.Bottom),
	new SKColor[] { SKColors.DeepPink, SKColor.Parse("#fd5d93") },
	new float[] { 0, 1 },
	SKShaderTileMode.Mirror);


	// Draw the gradient on the rectangle
	canvas.DrawRect(rect, paint);


	var rs = new RichString().Alignment(Topten.RichTextKit.TextAlignment.Center)
	.FontFamily("Segoe UI")
	.FontSize(10)
	.Add($"{val}", textColor: SKColors.WhiteSmoke);

	var tw = rs.MeasuredWidth;
	rs.MaxWidth = 25;

	rs.Paint(canvas, new SKPoint(x, y), new TextPaintOptions { IsAntialias = true });
	z++;


	}
	}

	}
	}}

view raw MainWindow.cs hosted with ❤ by GitHub

	<Window x:Class="Xaml.Shop.SkiaWPFSamples.MainWindow"
	xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
	xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
	xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
	xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
	xmlns:skia="clr-namespace:SkiaSharp.Views;assembly=SkiaSharp.Views.WPF"
	xmlns:local="clr-namespace:SkiaWPFSamples"
	xmlns:wpf="clr-namespace:SkiaSharp.Views.WPF;assembly=SkiaSharp.Views.WPF"
	mc:Ignorable="d"
	Title="WPF SKIA 2D Samples" Height="1020" Width="1900">
	<Grid>
	//set skia canvas
	<wpf:SKElement x:Name="skiaCanvas2" PaintSurface="skiaCanvas2_PaintSurface" />

	</Grid>
	</Window>

view raw MainWindow.xaml hosted with ❤ by GitHub
